Miscellaneous for PARKRAY DHW 12 SOLID FUEL

EXPLODED VIEW

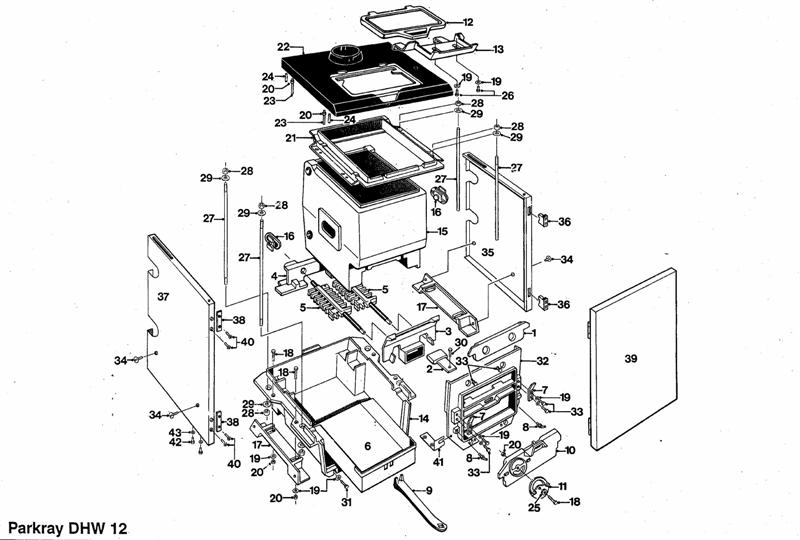

Exploded Diagram for EXPLODED VIEW

You can narrow your results further by choosing one of the following sub-appliances:

Sort by:

Page:

PARKRAY P140035 GRATE COVER HOOK PNTD DHW PT

Part No: 2400634 MPN: P140035

PARKRAY P140013 CASTING-BASE DUET U

Part No: 2400604 MPN: P140013

PARKRAY P140042 LOCATING PIN

Part No: 2400638 MPN: P140042

PARKRAY P140017 CASTING-GRATE BAR-FINISHED DHW

Part No: 2400608 MPN: P140017

PARKRAY P140019 CASTING-FRONT GRATE COVER DHW

Part No: 2400612 MPN: P140019

PARKRAY P140022 CASTING-INNER TOP DHW12

Part No: 2400616 MPN: P140022

PARKRAY P140024 CASTING-FUELLING LID BRACKET U

Part No: 2400620 MPN: P140024

PARKRAY P140027 CASTING - SIDE BRACKET DHW12

Part No: 2400624 MPN: P140027

PARKRAY P140029 SIDE PANEL-LH PNTD DHW

Part No: 2400628 MPN: P140029

PARKRAY P140032 ASHPAN BODY (SW) DHW12

Part No: 2400632 MPN: P140032

PARKRAY P140012 INNER FRONT FINISHED DHW

Part No: 2400602 MPN: P140012

PARKRAY P140039 HINGE RETAINING STRIP

Part No: 2400636 MPN: P140039

PARKRAY P140014 CASTING-ASHPIT COVER PT

Part No: 2400606 MPN: P140014

PARKRAY P140018 CASTING-BACK GRATE COVER DHW12

Part No: 2400610 MPN: P140018

PARKRAY P140020 CASTING-GRATE STOP DHW12

Part No: 2400614 MPN: P140020

20 products found
