GRUNDFOS MAGNA1 40-80 PUMP 97924176

Our Part No
2520836
MPN
97924176

We're sorry but this product has now been discontinued by Grundfos Pumps and can no longer be purchased.

A suitable replacement is: GRUND 99221303 MAGNA1 40-80 F 220 1x230V PN6/10 (MPN: 99221303)

Sorry, this part is now obsolete

GRUNDFOS MAGNA1 40-80 PUMP 97924176.

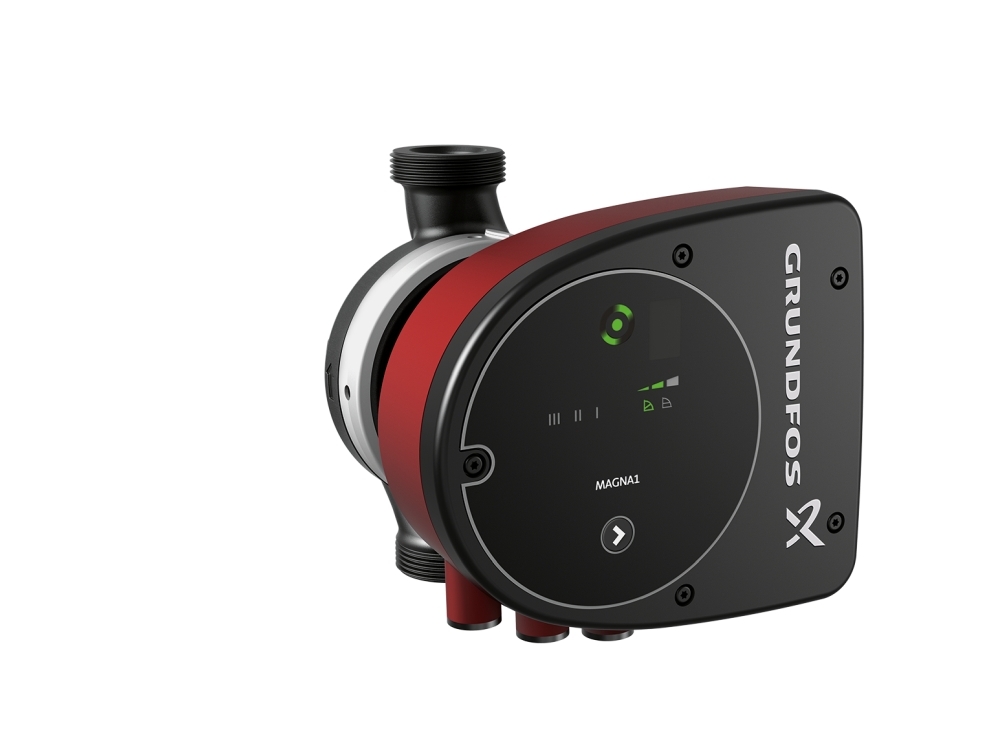

The Grundfos MAGNA1 40-80F Pump is a single stage circulator that designed for circulating liquid in a heating system or domestic hot water systems. The MAGNA1 40-80F has an energy efficiency index of 0.23 as well as a low noise level. The Pump is easy to fit and requires no maintenance.

Electrical data

  • Power input (P1) 17W to 267W
  • Mains frequency: 50Hz
  • Rated voltage: 1x 230V
  • Enclosure rating: X4D
  • Insulation class: F

Installation

  • Ambient temperature range: 0°C to 40°C
  • Max. Operating Pressure: 10 bar
  • Pipe connection: DN40
  • Pressure rating: PN6/10
  • Port-to-port length: 220mm

Liquid

  • Pumped liquid: Water
  • Temperature range: -10°C to 110°C
  • Temperature during operation: 60°C
  • Density: 983.2kg/m³

Materials

  • Pump housing: Cast iron (EN-GJL-200 / ASTM A48-200B)
  • Impeller: Polyethersulfone (PES 30%GF)

The GRUNDFOS MAGNA1 40-80 PUMP 97924176 is a genuine, brand new Grundfos Pumps product, covered by a Grundfos Pumps manufacturer's guarantee.
