WILO 2150595 STRATOS 100/1-12 1PH PN6/10

WILO 2150595 STRATOS 100/1-12 1PH PN6/10.

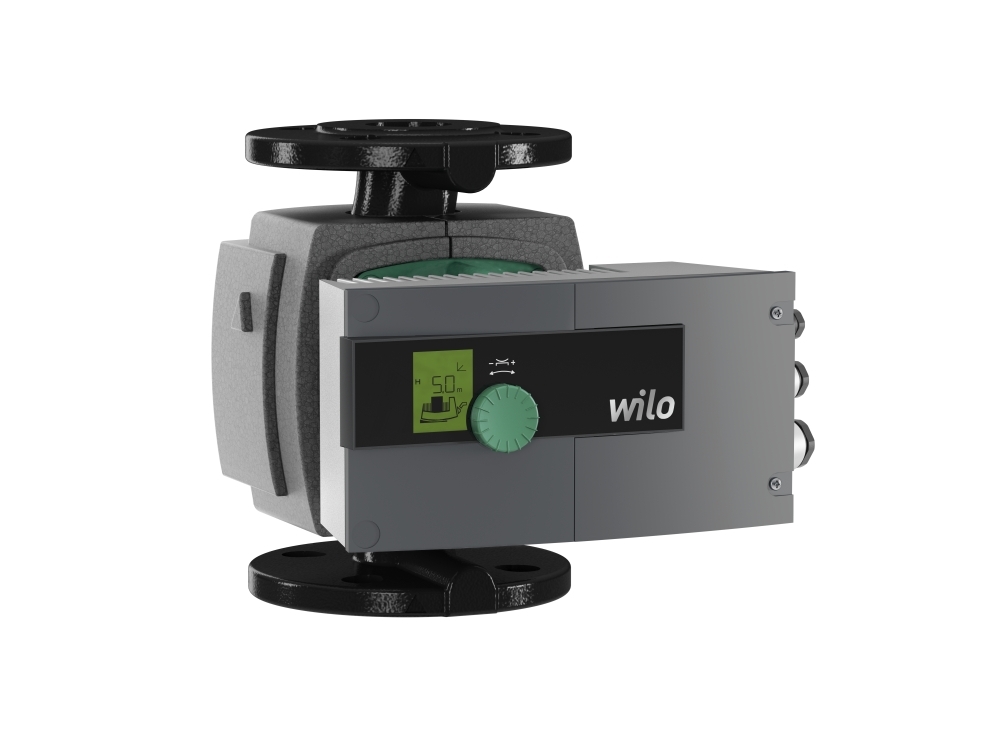

The Wilo Stratos 100/1-12 Pump is a glandless circulation pump with an EC motor and automatic power adjustment. The Stratos pump can be extended for building automation with optional IF-module connection.

The pump can be used for all kinds of hot water heating systems, air conditioning systems, closed cooling circuits and industrial circulation systems.

Pump Specification

• Max. volume flow (Q): 62 m³/h
• Max. delivery head (H): 12m
• Energy Efficiency Index (EEI): 0.20
• Max. operating pressure (PN): 10 bar
• Pipe connection: DN 100
• Port-to-port length: 360mm

Motor Data

• Mains connection: 1~230 V, 50/60 Hz, 6.80 A
• Insulation class: F
• Interference resistance: Residential area (C1) / EN 61800-3;2004+A1;2012
• Emitted interference: Industrial environment (C2) / EN 61800-3;2004+A1;2012
• Electromagnetic compatibility: EN 61000-6-2

Pump Material

• Shaft: Stainless steel (1.4028, X30Cr13)
• Pump Housing: Cast iron (5.1301, EN-GJL-250)
• Impeller: Plastic (PP-LGF50)
• Bearing: Carbon, metal impregnated

The WILO 2150595 STRATOS 100/1-12 1PH PN6/10 is a genuine, brand new Wilo product, covered by a Wilo manufacturer's guarantee.
