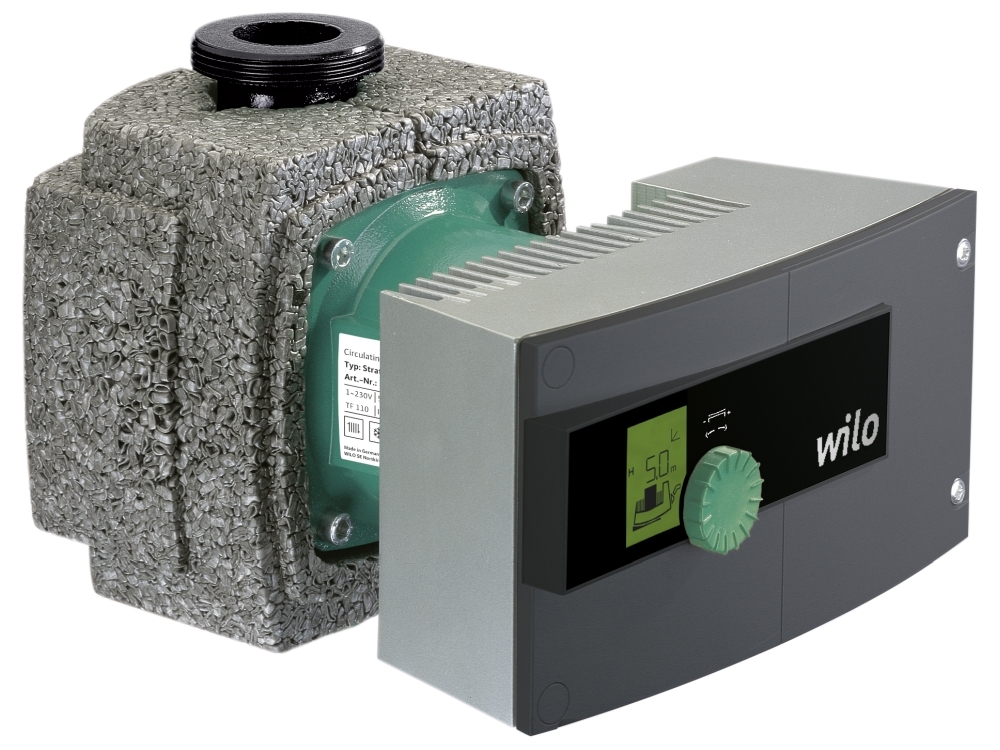

WILO 2090447 STRATOS 25/1-6 1PH PN10 PUMP.
The Wilo Stratos 25/1-6 high efficiency pump is a glandless circulation pump with an EC motor which is used for a range of HVAC applications including, all types of hot water heating systems, air-conditioning systems, closed cooling circuits and industrial circulation systems.
Pump Specification
- Max. volume flow (Q): 7.6 m3/h
- Max. delivery head (H): 6m
- Energy Efficiency Index (EEI): 0.20
- Max. operating pressure (PN): 16 bar
- Pipe connection: G 1½
- Port-to-port length: 180mm
Motor Data
- Mains connection: 1~230 V, 50/60 Hz, 0.70 A
- Insulation class: F
- Emitted interference: Residential area (C1) / EN 61800-3;2004+A1;2012
- Interference resistance: Industrial environment (C2) / EN 61800-3;2004+A1;2012
- Electromagnetic compatibility: EN 61000-6-2
Pump Material
- Shaft: Stainless steel (1.4122, X39CrMo17-1)
- Pump housing: Cast iron (5.1300, EN-GJL-200)
- Impeller: Plastic (PPE-GF30)
- Bearing: Carbon, metal impregnated
The WILO 2090447 STRATOS 25/1-6 1PH PN10 PUMP is a genuine, brand new Wilo product, covered by a Wilo manufacturer's guarantee.
