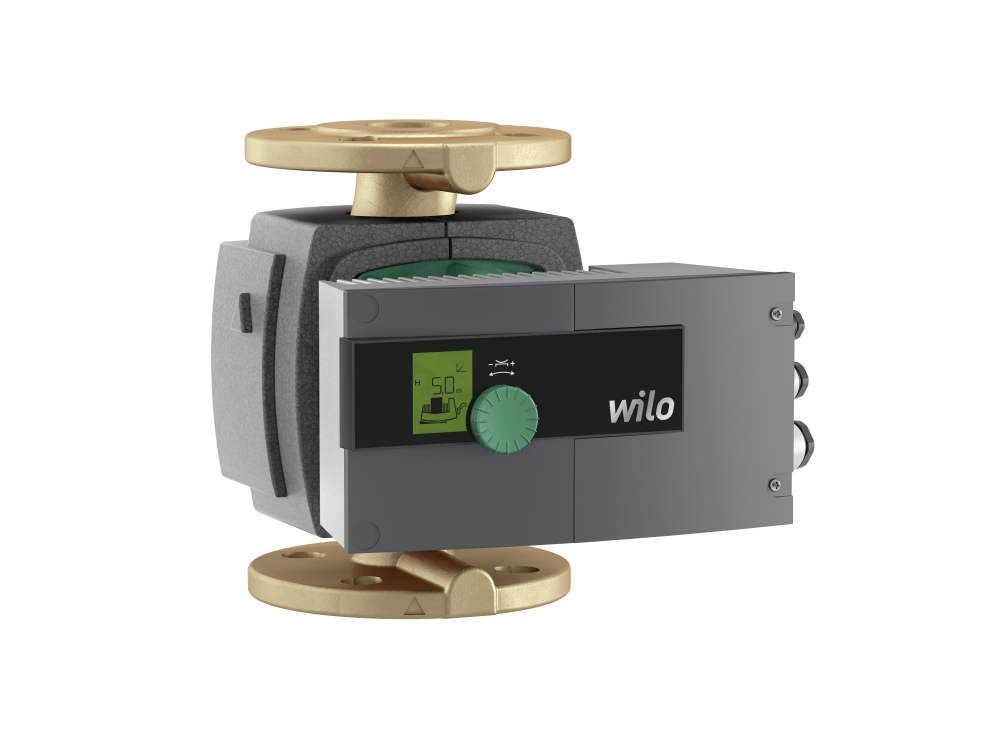

WILO 2090472 STRATOS-Z 40/1-8

WILO 2090472 STRATOS-Z 40/1-8.

The Wilo Stratos-Z 40/1-8 Pump is a glandless circulating pump which has an EC motor with automatic power adjustment. The Stratos-Z pump is used for a range of HVAC applications including, domestic hot water circulation, hot water heating systems, air conditioning, closed cooling circuits and industrial circulation systems.

The Stratos-Z pump can be extended with optional IF-modules to work with building automation and has connection capabilities for all conventional bus systems (e.g. Modbus, BACnet, CAN, LON and PLR)

Pump Specification

• Max. volume flow (Q): 17 m³/h
• Max. delivery head (H): 8 m
• Energy Efficiency Index (EEI): 0.20
• Pipe connection: DN 40
• Port-to-port length: 220mm

Motor Data

• Mains connection: 1~230 V, 50/60 Hz, 0.20 A
• Insulation class: F
• Emitted interference: Residential area (C1) / EN 61800-3;2004+A1;2012
• Interference resistance: Industrial environment (C2) / EN 61800-3;2004+A1;2012
• Electromagnetic compatibility: EN 61000-6-2

Pump Material

• Shaft: Stainless steel (1.4122, X39CrMo17-1)
• Pump housing: Bronze (CC499K, CuSn5Zn5Pb2-C)
• Impeller: Plastic (PPS-GF40)
• Bearing: Carbon, antimony impregnated

---

The WILO 2090472 STRATOS-Z 40/1-8 is a genuine, brand new Wilo product, covered by a Wilo manufacturer's guarantee.
