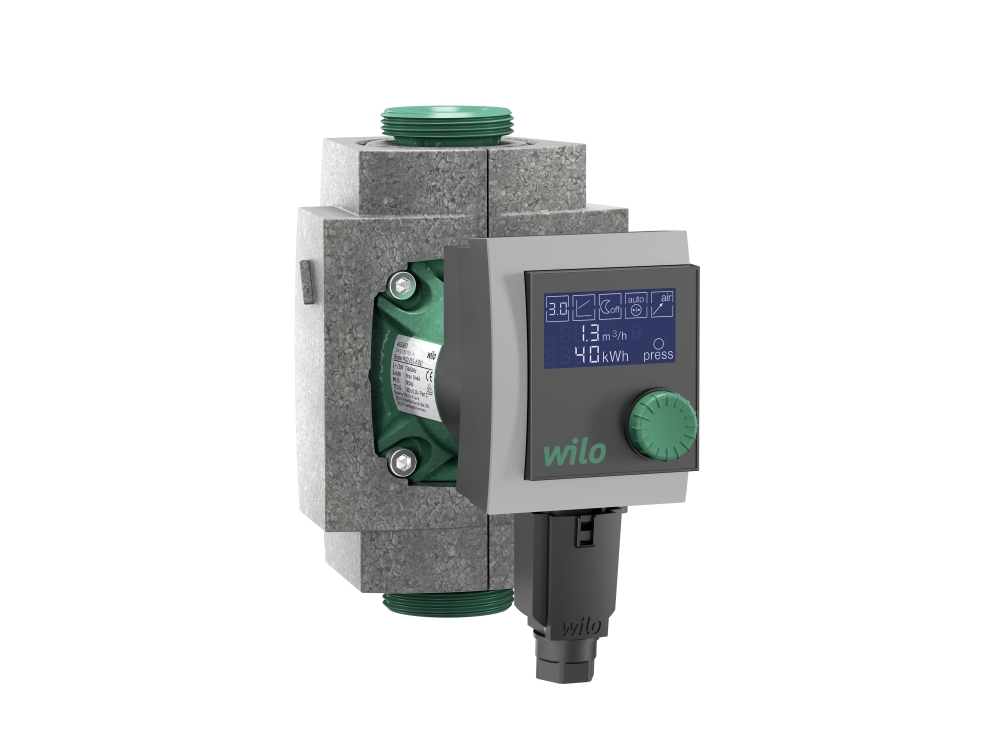

WILO 4216617 STRATOS PICO 25/1-6 130 PUMP

WILO 4216617 STRATOS PICO 25/1-6 130 PUMP.

The Wilo Stratos PICO 25/1-6-130 Pump offers maximum energy efficiency with the combination of an EC motor, Dynamic Adapt and precise setting options for adjusting settings with an accuracy of 0.1m.

The pump offers high reliability due to its self protecting routines such as the automatic dry running detection and automatic restart functions. The pump has an intuitive adjustment and maintenance via Green Button Technology which is used for the activation of functions and operating modes on the LC display which allows for easy monitoring of the current power consumption, flow and cumulative kWh.

Pump Specifications

• Max. volume flow (Q): 4.4 m³/h
• Max. delivery head (H): 6m
• Energy Efficiency Index (EEI): 0.20
• Max. operating pressure (PN): 10 bar
• Pipe connection: G 1½
• Port-to-port length: 130mm

Motor Data

• Mains connection: 1~230 V, 50/60 Hz, 0.44 A
• Insulation class: F
• Emitted interference: EN 61000-6-3
• Interference resistance: EN 61000-6-2

Pump Materials

• Shaft: Stainless steel (1.4122, X39CrMo17-1)
• Pump housing: Cast iron (5.1300, EN-GJL-200)
• Impeller: Plastic (PP-GF40)
• Bearing: Total Carbon

---

The WILO 4216617 STRATOS PICO 25/1-6 130 PUMP is a genuine, brand new Wilo product, covered by a Wilo manufacturer's guarantee.
