Uncategorised for CHARNWD DX4 5IB-50IB STOVEWOOD

EXPLODED VIEW

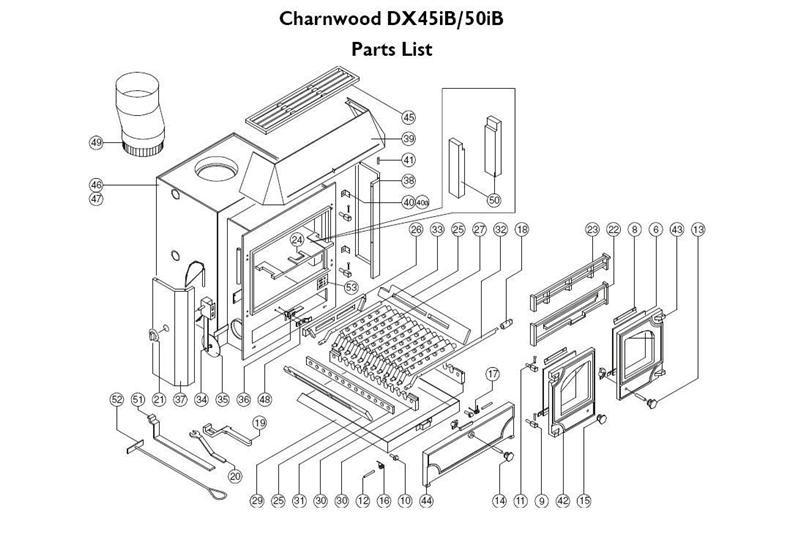

Exploded Diagram for EXPLODED VIEW

You can narrow your results further by choosing one of the following sub-appliances:

Sort by:

Page:

CHNW 009/DX45IB/A FIREBOX ASSEMBLY (DX45IB) - OBSOLETE

Part No: 2380286 MPN: 009/DX45IB/A

CHNW 004/WW13 PANEL FIXING BRACKET - OBSOLETE

Part No: 2380740 MPN: 004/WW13

CHNW 012/BW45 ASHPIT DOOR BRACKET - OBSOLETE

Part No: 2381004 MPN: 012/BW45

CHNW 008/BW39/S HINGE PINS (4 PER SET) - NOW USE 2381092

Part No: 2381094 MPN: 008/BW39/S

CHNW 008/BW44/S GLASS CHANNEL SET OF 8- OBSOLETE

Part No: 2380234 MPN: 008/BW44/S

CHNW 009/DX50IB/A FIREBOX ASSEMBLY (DX50IB) - OBSOLETE

Part No: 2380288 MPN: 009/DX50IB/A

CHNW 012/FW12 FLUE OFFSET (OPTIONAL EXTRA) - OBSOLETE

Part No: 2380798 MPN: 012/FW12

CHNW 008/TH02/L LOW LEVEL PIPE STAT (OPT'L EXTRA) - OBSOLETE

Part No: 2381018 MPN: 008/TH02/L

8 products found
