Pipe Assembly for Alpha CB 24

BOILER COMPLETE

Exploded Diagram for BOILER COMPLETE

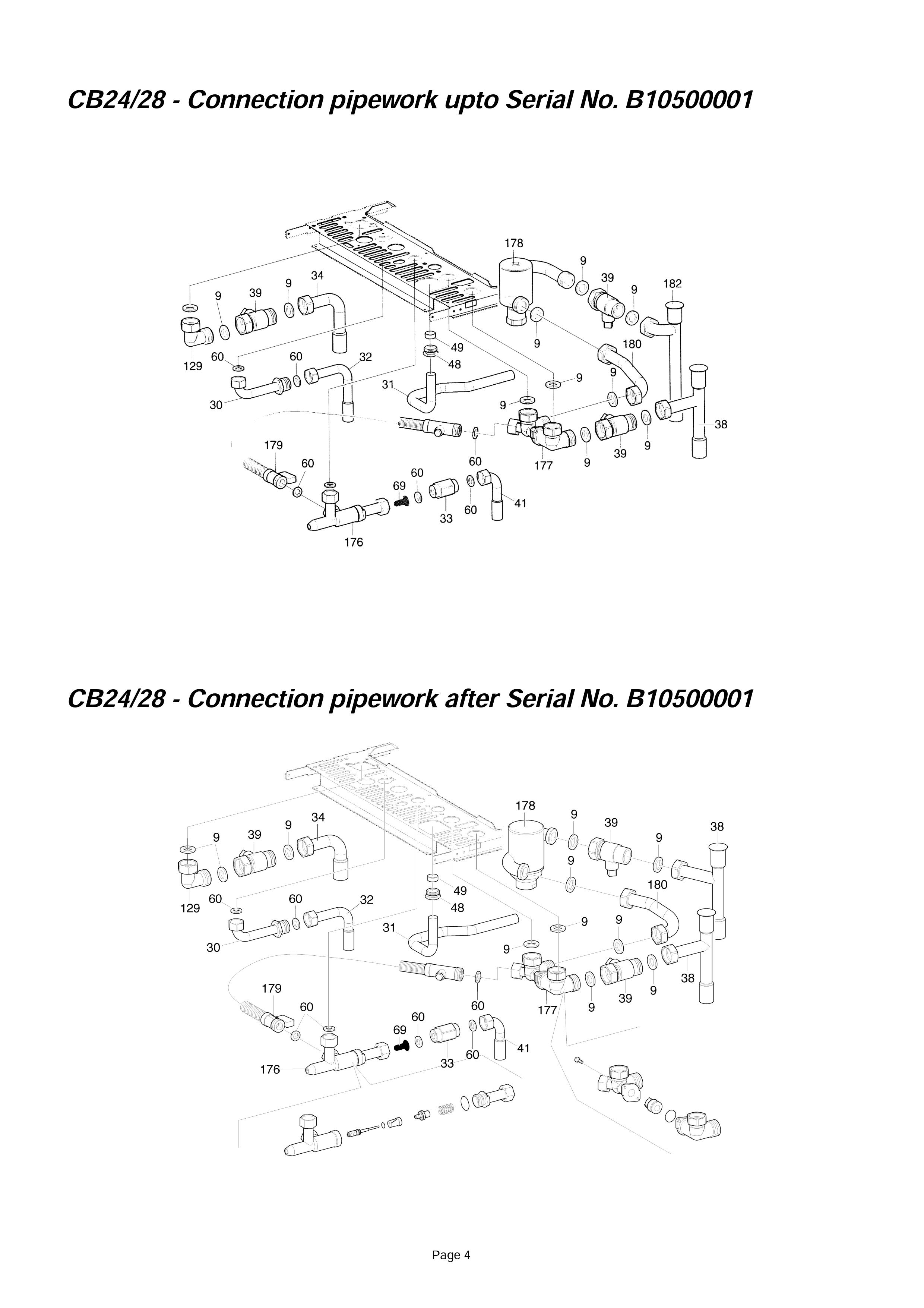

CONNECTION PIPEWORK

Exploded Diagram for CONNECTION PIPEWORK

Brand: Alpha Range: CB Model: 24 GC Number: 47-532-15

We have a range of spare parts for the Alpha CB 24. Can't find the part you're looking for? You can contact us and a member of our team will be more than happy to help find the part you need.

Installation Manual

All of our boiler manuals are free to download from our boiler manuals section

You can narrow your results further by choosing one of the following sub-appliances:

Installation Manual
ALPHA 1.015637 SILICONE PIPE CONNECTOR 45

ALPHA 1.015637 SILICONE PIPE CONNECTOR

Part No: 1250137 MPN: 1.015637

£1.43 inc VAT

In stock - Next day delivery available

ALPHA 1.015413 HOT WATER OUTLET PIPE 30

ALPHA 1.015413 HOT WATER OUTLET PIPE

Part No: 1250107 MPN: 1.015413

£25.20 inc VAT

In stock - Next day delivery available

ALPHA 1.016674 PIPE HEATING FLOW 38/182

ALPHA 1.016674 PIPE HEATING FLOW

Part No: 1250175 MPN: 1.016674

£52.80 inc VAT

Available in 5-7 working days

180

ALPHA 1.016142 RTN.PIPE(CYCLONE)PRE S/NO.B110

Part No: 1250150 MPN: 1.016142

£22.91 inc VAT

Available in 5-7 working days

ALPHA 1.016673 PIPE GAS CONNECTION 34

ALPHA 1.016673 PIPE GAS CONNECTION

Part No: 1250174 MPN: 1.016673

£6.71 inc VAT

Available in 5-7 working days

180

ALPHA 1.016675 PIPE RTN(CYC.)AFTER S/NO.B110

Part No: 1250176 MPN: 1.016675

£25.20 inc VAT

Available in 5-7 working days

ALPHA 1.016672 PIPE DHW OUTLET(LOWER) 32

ALPHA 1.016672 PIPE DHW OUTLET(LOWER)

Part No: 1250173 MPN: 1.016672

Sorry, this part is now obsolete

View Part Details
7 products found
