Pipe Assembly for Biasi 24Se

EXTERNAL PANELS, FIRE CHAMBER

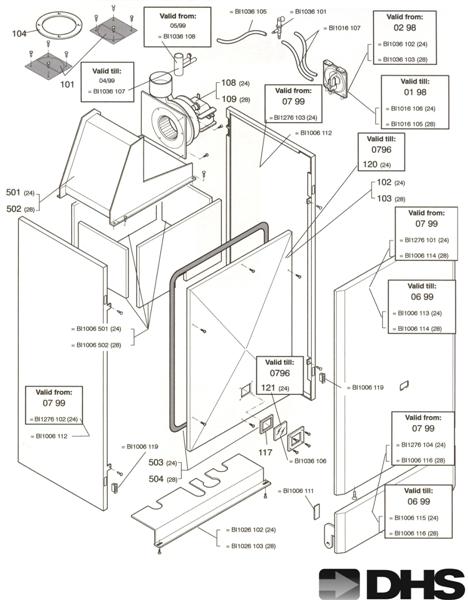

Exploded Diagram for EXTERNAL PANELS, FIRE CHAMBER

TEMPLATE & CONNECTION ASSY

Exploded Diagram for TEMPLATE & CONNECTION ASSY

WATER ASSY

Exploded Diagram for WATER ASSY

WATER ASSY 1

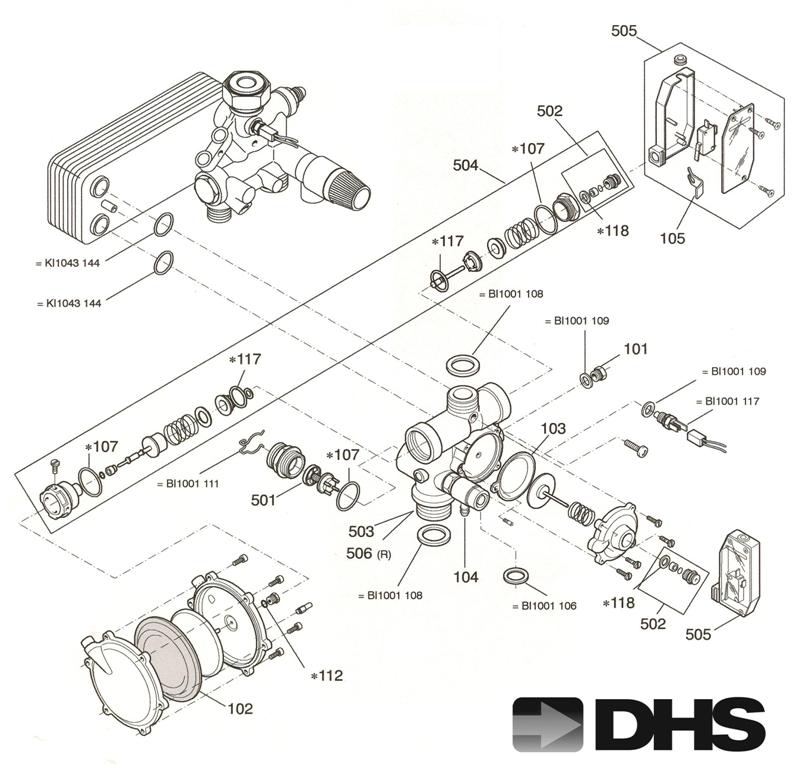

Exploded Diagram for WATER ASSY 1

WATER ASSY 2

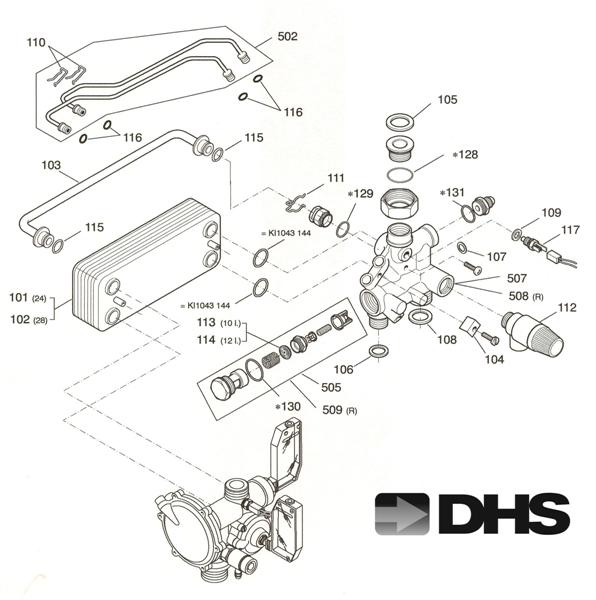

Exploded Diagram for WATER ASSY 2

Brand: Biasi Range: 24SE GC Number: 41-970-03

Here you will find all the spare parts for the Biasi 24Se. Can't find the part you're looking for? You can contact us and a member of our team will be more than happy to help find the part you need.

Installation Manual

All of our boiler manuals are free to download from our boiler manuals section

You can narrow your results further by choosing one of the following sub-appliances:

Installation Manual
111

BIASI BI1004111 DHW PIPE

Part No: 1650058 MPN: BI1004111

£12.83 inc VAT

Available in 5-7 working days

104

BIASI BI1001104 DHW PRESS. SW. PIPE FIXING CLA

Part No: 1650003 MPN: BI1001104

£3.59 inc VAT

Available in 5-7 working days

108

BIASI BI1002108 AIR DRAINAGE VALVE PIPE

Part No: 1650040 MPN: BI1002108

£25.20 inc VAT

Available in 5-7 working days

BI1016107

BIASI BI1016107 240 L SILICONE PIPE

Part No: 1650133 MPN: BI1016107

£10.31 inc VAT

Available in 5-7 working days

103

BIASI BI1001103 BY-PASS PIPE

Part No: 1650002 MPN: BI1001103

£23.39 inc VAT

Available in 5-7 working days

BIASI BI1001111 BY-PASS PIPE FIXING FORK 111

BIASI BI1001111 BY-PASS PIPE FIXING FORK

Part No: 1650010 MPN: BI1001111

£10.55 inc VAT

In stock - Next day delivery available

109

BIASI BI1004109 CH + GAS PIPE (FLOW & RETURN)

Part No: 1650056 MPN: BI1004109

Sorry, this part is now obsolete

View Part Details
110

BIASI BI1004110 CH + GAS PIPE

Part No: 1650057 MPN: BI1004110

Sorry, this part is now obsolete

View Part Details
8 products found
